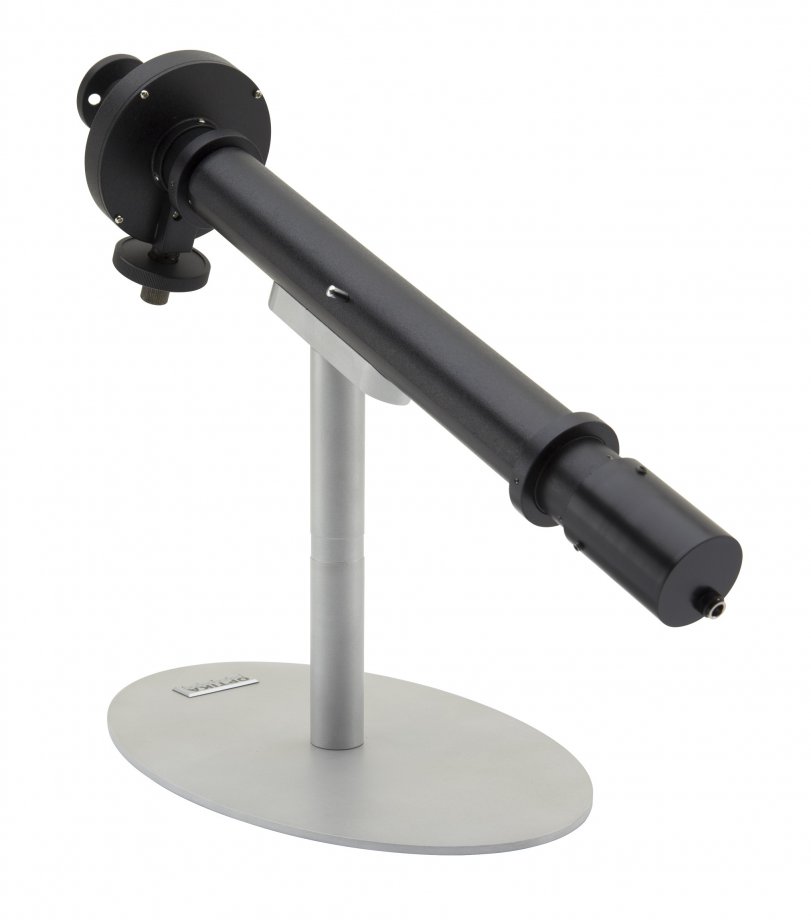

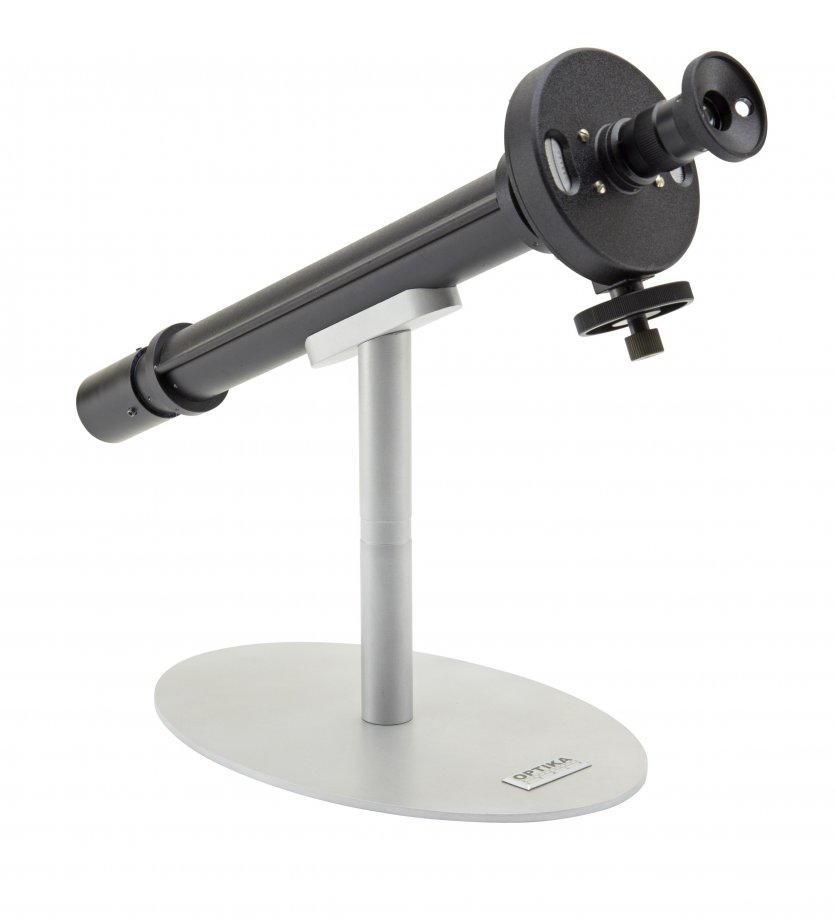

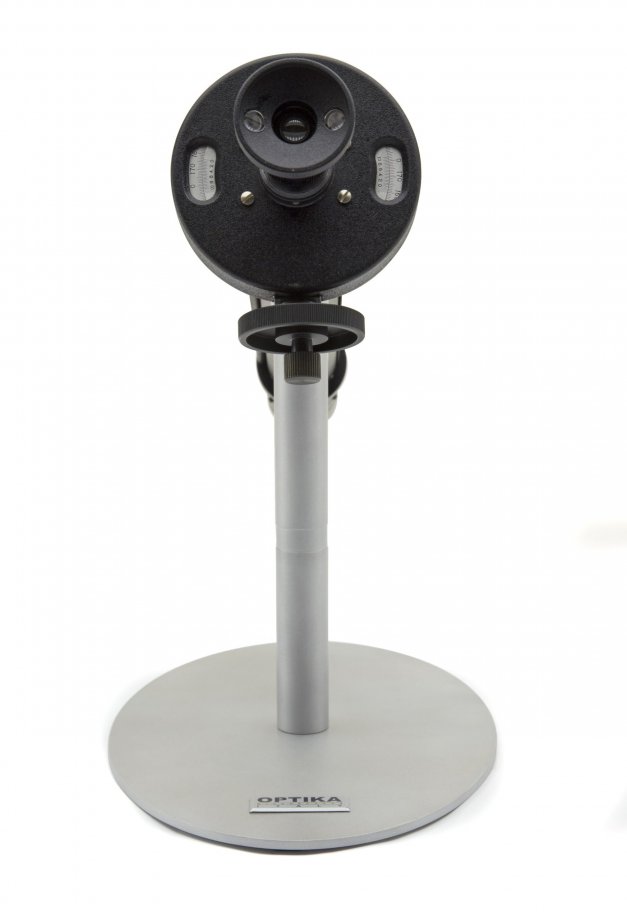

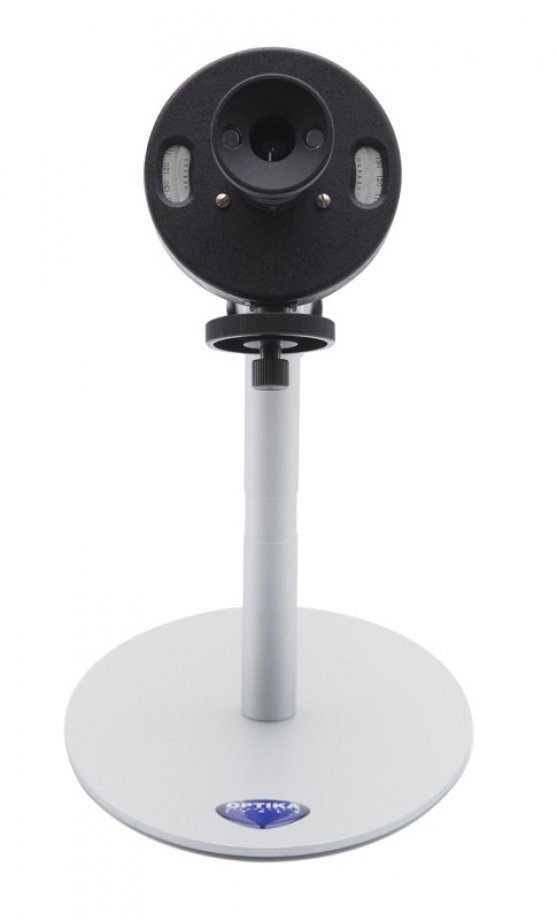

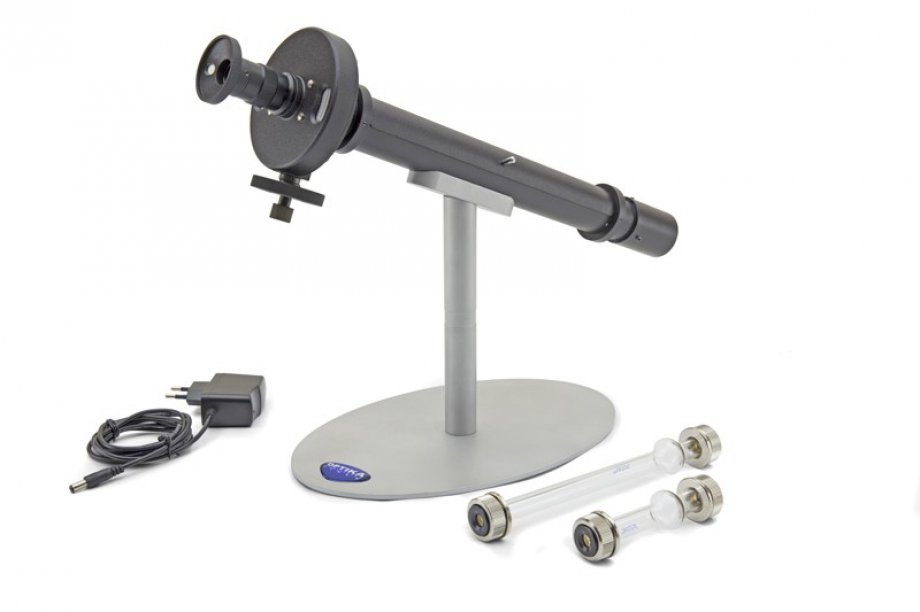

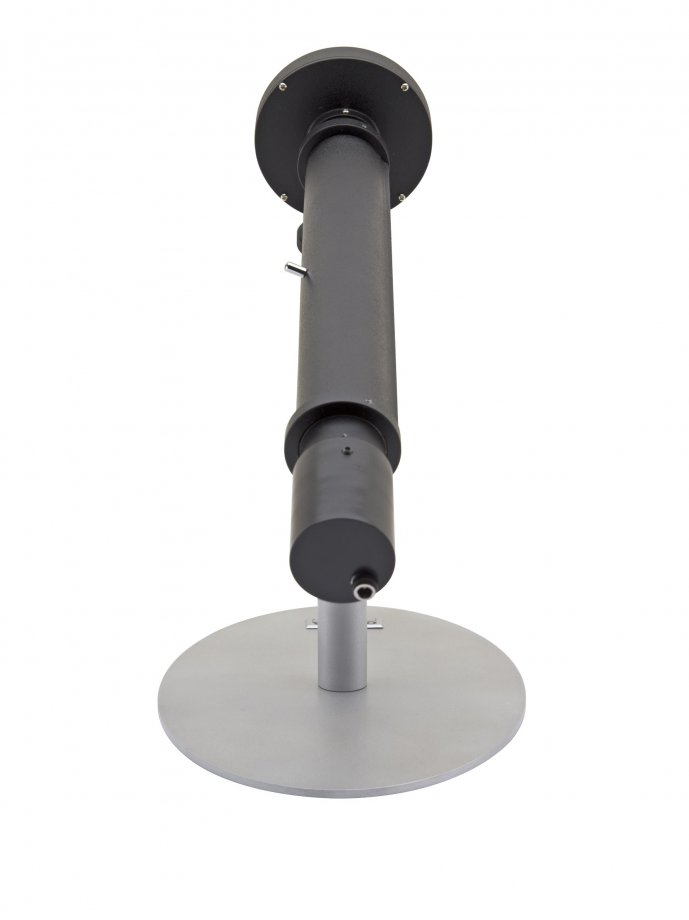

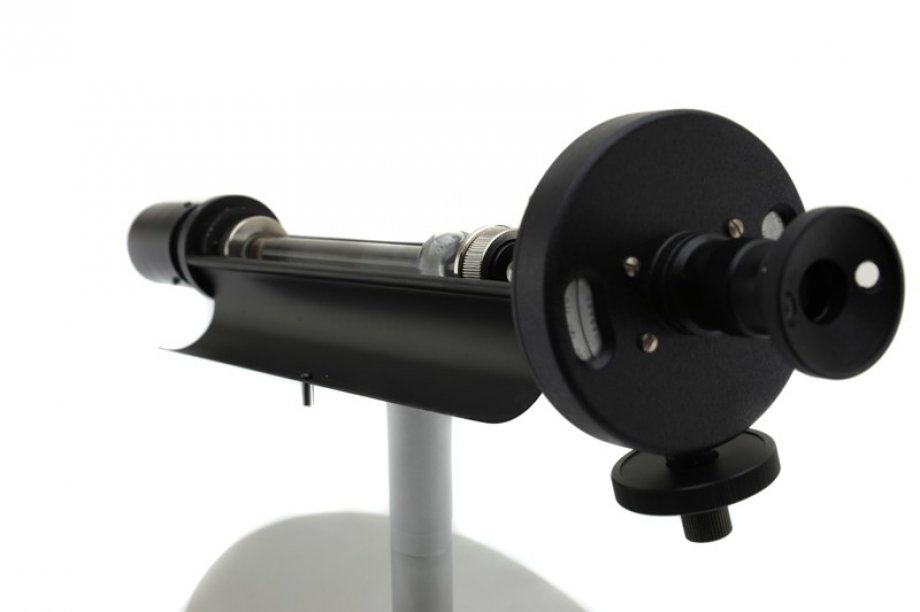

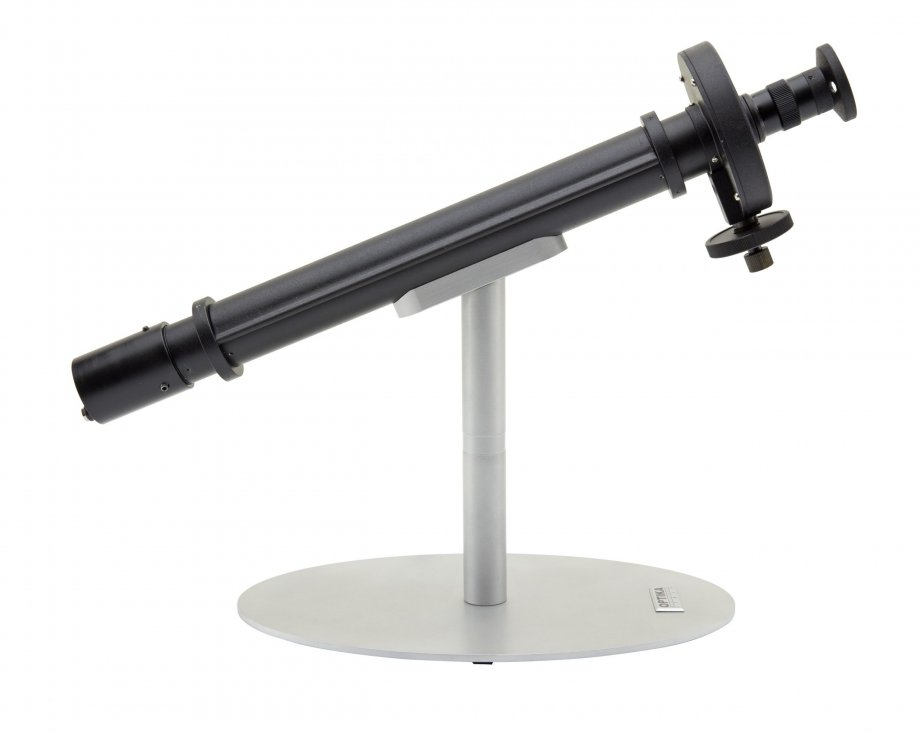

POL-X Bench polarimeter with monochromatic LED light source

Used for measuring the concentration of optically active substances (for example sugars) in a solution.
Measuring range of optical rotation: ± 180°
Resolution: 1°
Accuracy: 0.05°
Magnification factor of the magnifying glass: 4x
Light source: Monochromatic LED, 1.2 W, ld = 590 nm (equivalent to sodium lamp)
Length of test tubes: 100mm and 200mm.
Power Supply: Input 100/240V ac, 50/60 Hz; Output 5V dc 500 mA
Weight: 1,7kg
