2095 Precision linear expansion apparatus

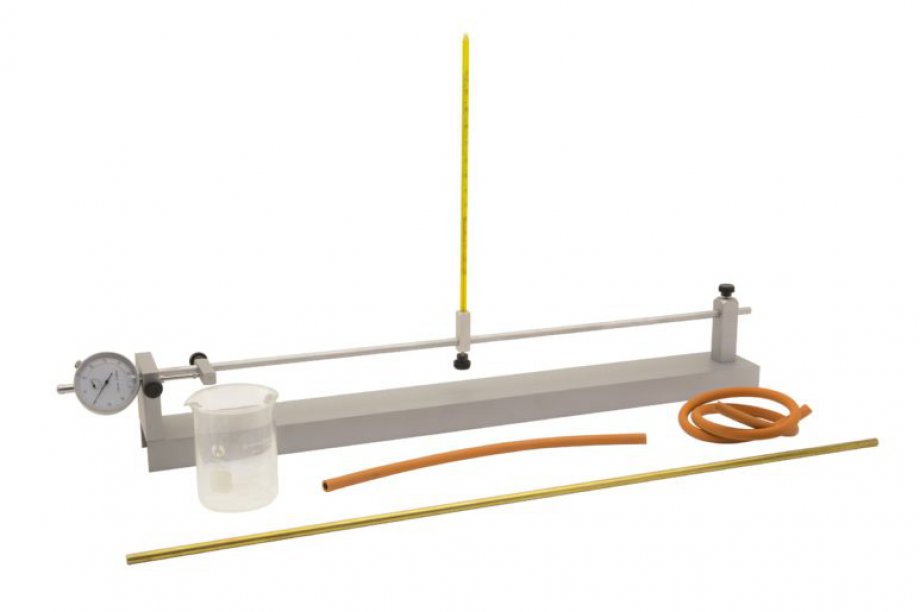

The precision linear expansion apparatus is provided with two metal hollow rods of different materials that are heated by the steam passing through them. The linear expansion of the different metals is measured using a dial gauge, while temperature is measured using a thermometer placed in contact with the rod.
In this way students can obtained all the information necessary to calculate the coefficient of linear thermal expansion.
Equipment supplied
1 Linear expansion apparatus
1 Aluminum rod 700 mm
1 Brass rod 700 mm
1 Dial gauge 0-10 mm, 0.01 mm
1 Thermometer
1 Beaker
2 Silicone tube 50 cm
Equipment required - not supplied
Steam generator kit:
1 Heating plate code 6149
1 Filtering flask code V102
1 Rubber stopper code G17
